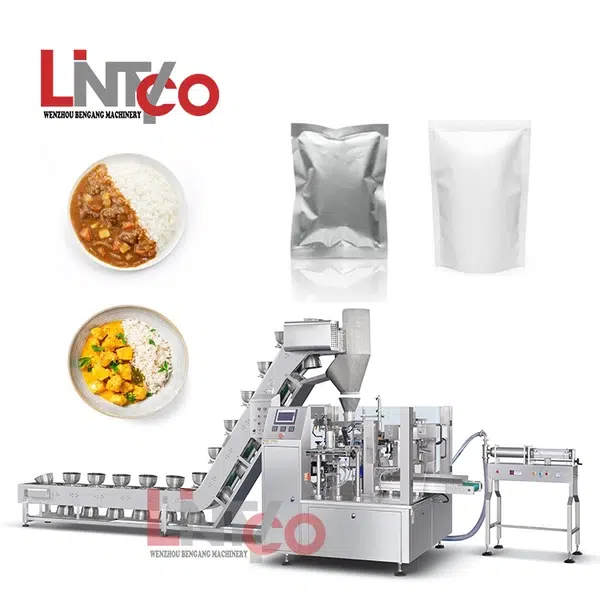

Speicl Product Premade Pouch Packaing Machine
- special for granule/solid food and such as chicken,legs,noodles,rice,curry rice,congee…etc.
- apply for ready bag such as zipper bag, stand-up bag, doypack, side spout bag…etc.
- machine covered SS304 and adopt high quality electronic components.
- we provide layout arrangement drawing service and OEM service.
- warranty period 1 year.
- delivery time 20-60 days.
Automatic Pickle Packing Machine Suppiler
Related Product Click To Check
Special Product Packing Machine special for something such as shisha, pickles, chicken, kimchi and ready meal…..etc.
Summery | |||
1. Easy to change bag size and bag type. 2. Easy to adjust Printer range. 3. Machine optoelectronic system can check bag,material filling and sealing situation to avoid failure. 4. Stable worktable with low noise and long life as the bottom drive system. 5. High bag opening effective and low machine failure rate. 6. Sample wiring arrangement with high quality electronic components | |||
Parameters | |||
LTC8-200 | LTC8-260 | LTC8-300 | |
Bags size | W:80~210mm L:100~300mm | W:120~250mm L:100~400mm | W:200~300mm L:100~400mm |
Bag type | Flat bag. Stand-up bag. Zipper bag. Doypack zipper bag. Spout bag | Flat bag. Stand-up bag. Zipper bag. Doypack zipper bag. Spout bag | Flat bag. Stand-up bag. Zipper bag. Doypack zipper bag. Spout bag |
Filling Volume | 30 – 1900g depending on type of products | 30-2000g depending on type of products | 100-2500g depending on type of products |
Capacity | 25-60 bags/min for different material and different bag | 25-60 bags/min for different material and different bag | 25-60 bags/min for different material and different bag |
Dimension | 1.140*1.500*1.560m | 2.46*1.83*1.46m | |
Weight & power supply | 1400kgs/1500kgs/1600kgs-1800kgs 380v 50HZ 3P 2.5kw-5kw | ||
Compress air requirement | 0.6-1m³/min supply by user | ||
Working flow | 1. Bag feeding 2. Date printing 3. Zipper opening 4. Bag opening 5. Material filling 6. 2th material filling 7. Buffering or function 8. 2th sealing and output | ||

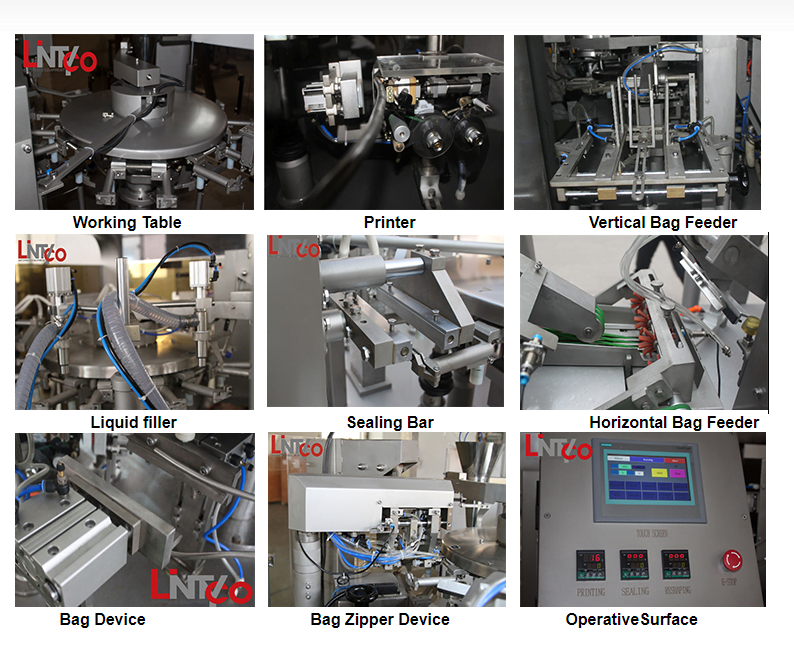

Product Image
Sample Bag
Attention: If the bag sizes fall outside of the specified range, we will offer customization options to fulfill any unique size requests.
- Zipper/Resealable/Ziplock bag packaging —— between zipper and bag mouth distance at least 2.5cm.
- Gusset bag packaging —— bag gusset width within 50mm, if the bag mouth is too small that products can’t fill completely, can’t do packing.
- Spout bag packaging —— spout at the side of the bag, sealing sizes at least 50mm.
- Pallet bag packaging —— pallet in bags, pallet length lower bag mouth at least 3cm.
Auxiliary Equipment
FAQ
Q1: Are you a factory or trading company? |
A: We have 10+ Long Years Of Manfacturing&Trading Combo With Quality |
Q2: Can you guarantee your quality? |
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured of our production completely. |
Q3: What should I do if we are not able to operate the machine when we receive it? |
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have a professional after-sale group on the customer’s site to solve any problems. |
Q4.What are the payment terms and trade terms for new customers? |
A: Payment terms: T/T, L/C, D/P, O/A, Western Union etc. |
